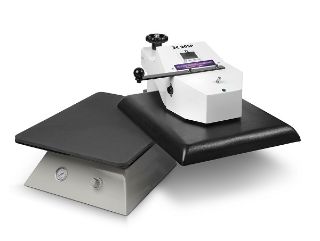

Geo Knight DK20SP Air Operated Digital Swinger 16 x 20 Heat Press

NEW!

The Digital Knight line of Swing away presses represents our most popular line of heat press machines. Because this design Swings completely out of the way of the table, these presses provide complete access to load and unload materials and layout transfers. The heat platen is always face down, and regardless of the height of the product being pressed, it is always pressed evenly & level. The Digital Combo multipurpose press also falls within this category as well.

The design of the Digital Knight swing-away presses combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy to use electronics. This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.

Utilizing a state-of-the-art control system and heavy-duty solid steel welded framework, these machines boasts a lifetime warranty on the heat platen, and an unprecedented 3-year warranty on the heat-control electronics.

The heat platen uses SuperCoil-Microwinding heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times.

The controller utilizes an easy to read oversized-digit LCD display to show time and temperature simultaneously, and the temperature readout is accurate within +-2°. The controller also features a digital height/pressure gauge for displaying current height settings. The operator can use the 70 programmable presets for saving common application settings of Temp/Time/Pressure, ensuring consistent, repeatable results for all applications. The press is adjustable to accommodate materials from fabric thickness all the way up to 1" thick substrates!

Features

• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Digital Pressure Bar Graph
• 70 Programmable presets
• Solid steel welded framework
• Shirts can dress/load around the table right-side up
• Interchangeable rotatable tables
• SuperCoil-Microwinding™heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen
• Lifetime warranty on heat platen
• 3-year warranty on control
• 1 year warranty on entire press

Click here to download a PDF brochure
